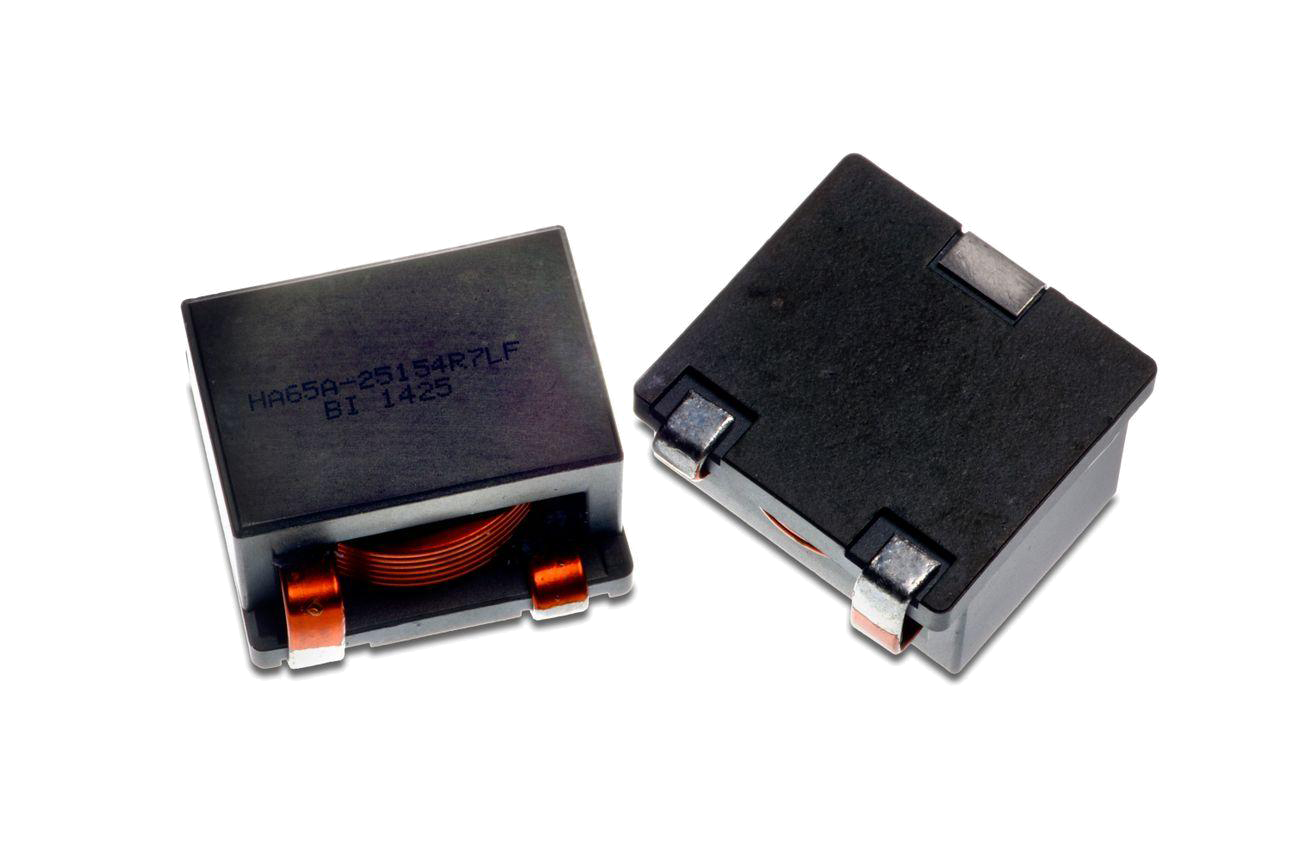

HA65A-2515XXXLF

SMD shielded high current inductor

Brand:

BI Technologies

Specifications

Mounting SM
Shape EI
Length 26.5mm
Width 26.5mm
Height 15.5mm
Inductance Type -
Packaging Options Bulk
RoHS Compliant Yes
Inductance Min 3.3uH
Inductance Max 33uH
Rated Current @ 25°C ambient Min 10.3A
Rated Current @ 25°C ambient Max 87A
DC Resistance Min 2.3mΩ
DC Resistance Max 2.6mΩ
Operating Temperature Min -40°C
Operating Temperature Max 155°C
Application Multi-purpose
AEC-Q200 Certified True
