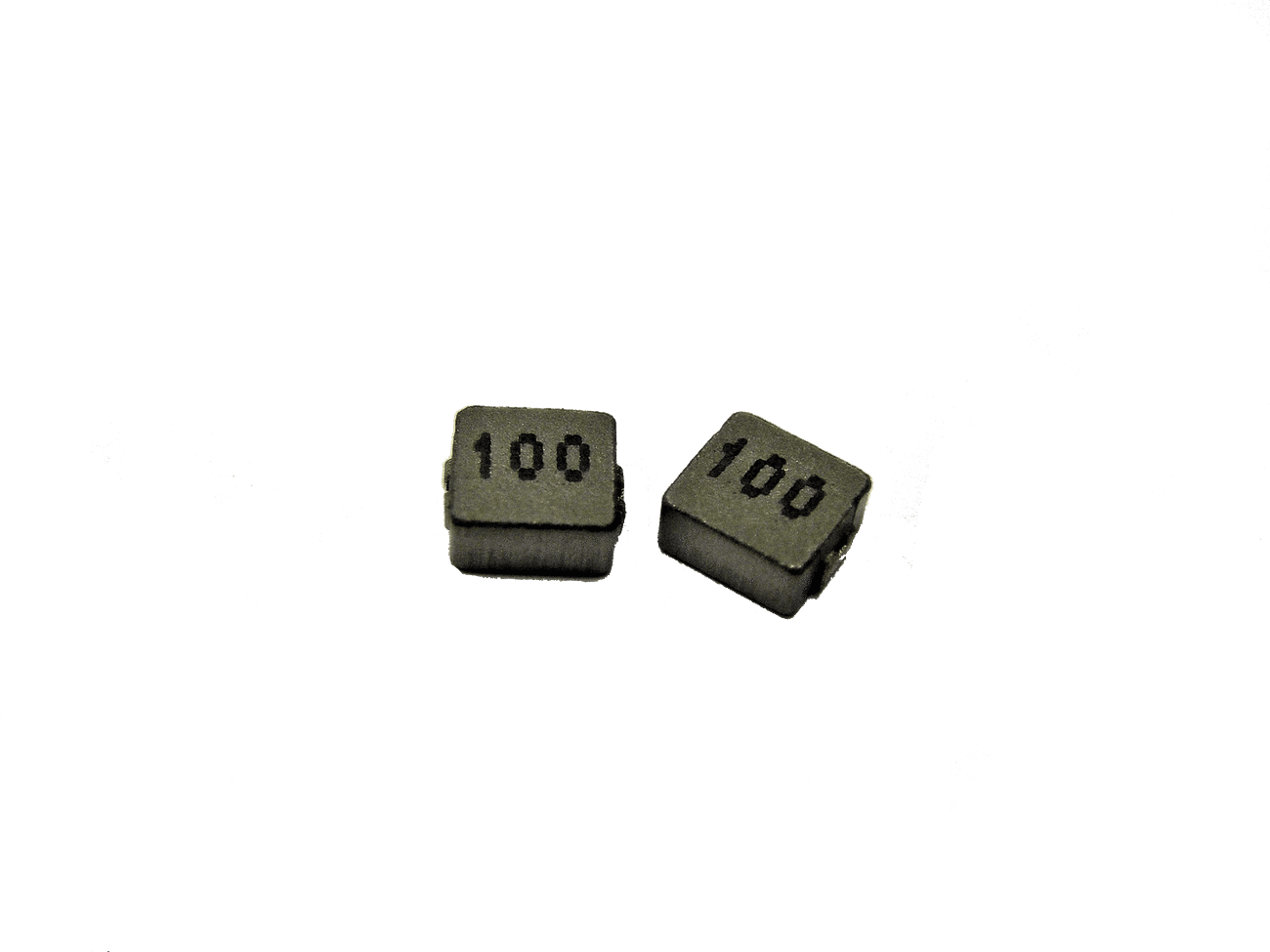

HA72L-0420XXLF

SMD power inductor

Brand:

BI Technologies

Specifications

Mounting SM
Shape X
Length 4.3mm
Width 4.6mm
Height 2mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min 0.1uH
Inductance Max 10uH
Rated Current @ 25°C ambient Min 2.2A
Rated Current @ 25°C ambient Max 22A
DC Resistance Min 4mΩ
DC Resistance Max 282mΩ
Operating Temperature Min -55°C
Operating Temperature Max 155°C
Application
  • LED drivers
  • Automotive LCD/LED displays
  • Engine and transmission control units
  • Diesel injection drivers
  • DC/DC converters for entertainment/navigation systems
  • Noise suppression for motors
  • Braking
  • Windshield wipers
  • Power steering
  • Seats and mirrors
  • Heating and ventilation blowers
AEC-Q200 Certified True
