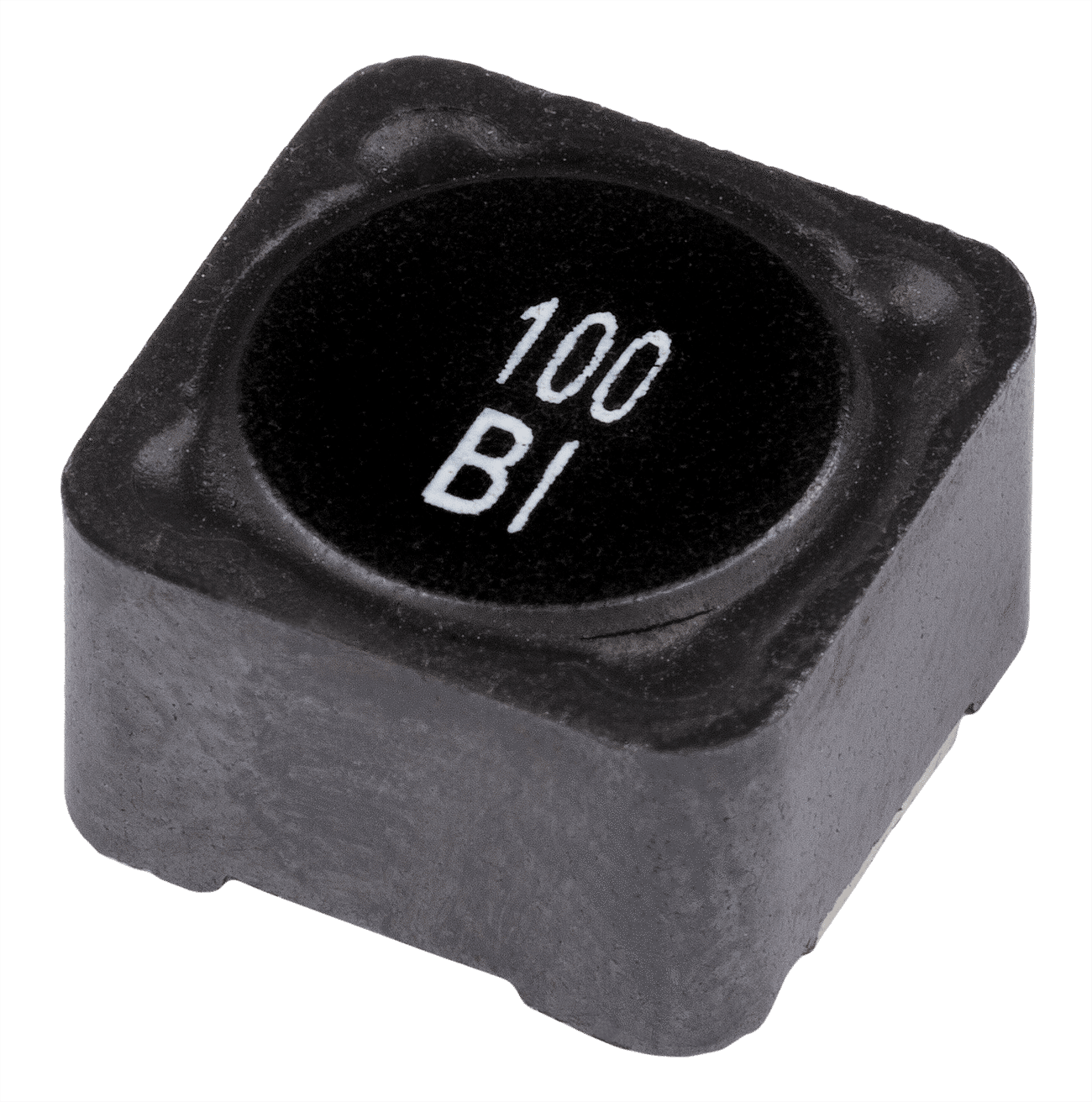

HA78-60XXXLF

SMD shielded inductor

Brand:

BI Technologies

Quote Request
Data Sheet

Specifications

Mounting SM
Shape DR, Shield
Length 12.5mm
Width 12.5mm
Height 8mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min 1.4uH
Inductance Max 220uH
Rated Current @ 25°C ambient Min 1.3A
Rated Current @ 25°C ambient Max 10A
Saturation Current @ 25°C ambient Min -
Saturation Current @ 25°C ambient Max -
DC Resistance Min 7mΩ
DC Resistance Max 370mΩ
Operating Temperature Min -40°C
Operating Temperature Max 125°C
Application DC/DC converters
AEC-Q200 Certified True
