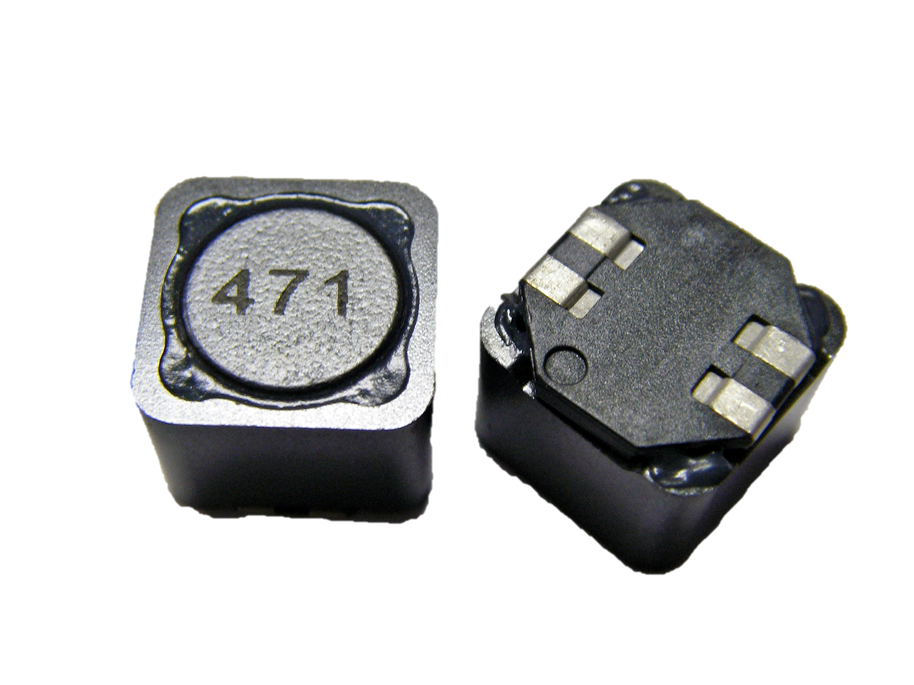

HA78DM-128XXXLFTR

Power Inductors

Brand:

BI Technologies

checkmark

Operating temperature range -55° to +155°C

checkmark

Tight coupling factor, typically 99%

checkmark

Ambient temperature, 115°C Max.

checkmark

Temperature rise, 40°C, Operating frequency up to 3MHz

checkmark

AEC-Q200 certified

Specifications

Mounting SM
Shape Drum/Sleeve
Length 12.5mm
Width 12.5mm
Height 8.05mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min 4.7uH
Inductance Max 100uH
Rated Current @ 25°C ambient Min 2A
Rated Current @ 25°C ambient Max 7.4A
DC Resistance Min 19mΩ
DC Resistance Max 150mΩ
Operating Temperature Min -55°C
Operating Temperature Max 155°C
Application
  • Common-mode choke
  • DC/DC converter especially for SEPIC topology
  • Automotive electronics
  • 1:1 transformer.
AEC-Q200 Certified True
