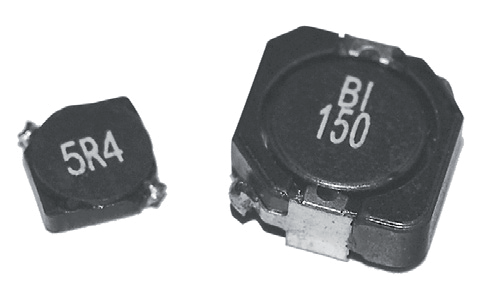

HM66-50XXXLF

Miniature, low profile shielded surface mount inductor

Brand:

BI Technologies

Specifications

Mounting SM
Shape Drum/Sleeve
Length 5.7mm
Width 5.7mm
Height 3mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min 2.5uH
Inductance Max 100uH
Rated Current @ 25°C ambient Min 0.4A
Rated Current @ 25°C ambient Max 2.6A
DC Resistance Min 18mΩ
DC Resistance Max 520mΩ
Operating Temperature Min -40°C
Operating Temperature Max 125°C
Application DC/DC converters
AEC-Q200 Certified False
