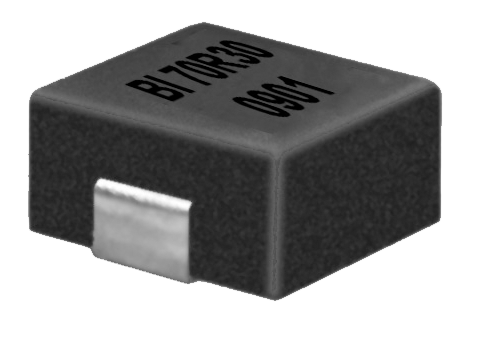

HM69-80XXXLF

High current low profile surface mount inductor

Brand:

BI Technologies

Specifications

Mounting SM
Shape EI
Length 13.8mm
Width 13mm
Height 8.2mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min 0.2uH
Inductance Max 0.4uH
Rated Current @ 25°C ambient Min 76A
Rated Current @ 25°C ambient Max 76A
DC Resistance Min -
DC Resistance Max 0.3mΩ
Operating Temperature Min -40°C
Operating Temperature Max 125°C
Application VRMs and power conversion
AEC-Q200 Certified False
