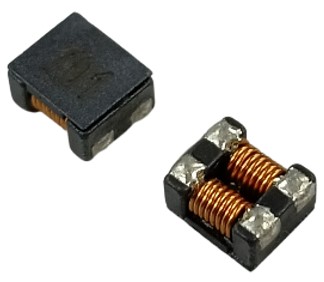

Brand:
BI Technologies
| Mounting | SM |
|---|---|
| Shape | SQ |
| Length | 8mm |
| Width | 6.2mm |
| Height | 4mm |
| Inductance Type | - |
| Packaging Options | Tape & Reel |
| RoHS Compliant | Yes |
| Inductance Min | - |
|---|---|
| Inductance Max | - |
| Rated Current @ 25°C ambient Min | 0.9A |
| Rated Current @ 25°C ambient Max | 9A |
| Saturation Current @ 25°C ambient Min | - |
| Saturation Current @ 25°C ambient Max | - |
| DC Resistance Min | 10mΩ |
| DC Resistance Max | 75mΩ |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Application | EMI filter |
| AEC-Q200 Certified | True |
|---|
| Datasheet | HA204 Datasheet | |
| 3D Model | HA204 | |
| Brochure | AEC-Q200 Qualified Magnetic Components | |
| Brochure | Magnetic Components Portfolio | |
| Brochure | Magnetic Components Product Data Short Form | |
| Compliance | Reach Statement for BI Technologies - Kuantan | |
| Compliance | Certificate of RoHS Compliance for Magnetic Components | |
| Compliance | CMRT for Kuantan Site | |
| Compliance | ISO 14001-2015 for Kuantan Site | |
| Compliance | OHSAS 18001-2007 for Kuantan Site | |
| Compliance | ISO-13485-2016-for-Kuantan-Site | |
| Compliance | ISO 9001 2015 for Kuantan Site | |
| Compliance | Conflict-Minerals-Policy-for-Kuantan-Site | |
| Compliance | AS9100D-for-Kuantan-Site | |
| Compliance | IATF-16949-for-Kuantan-Site |
