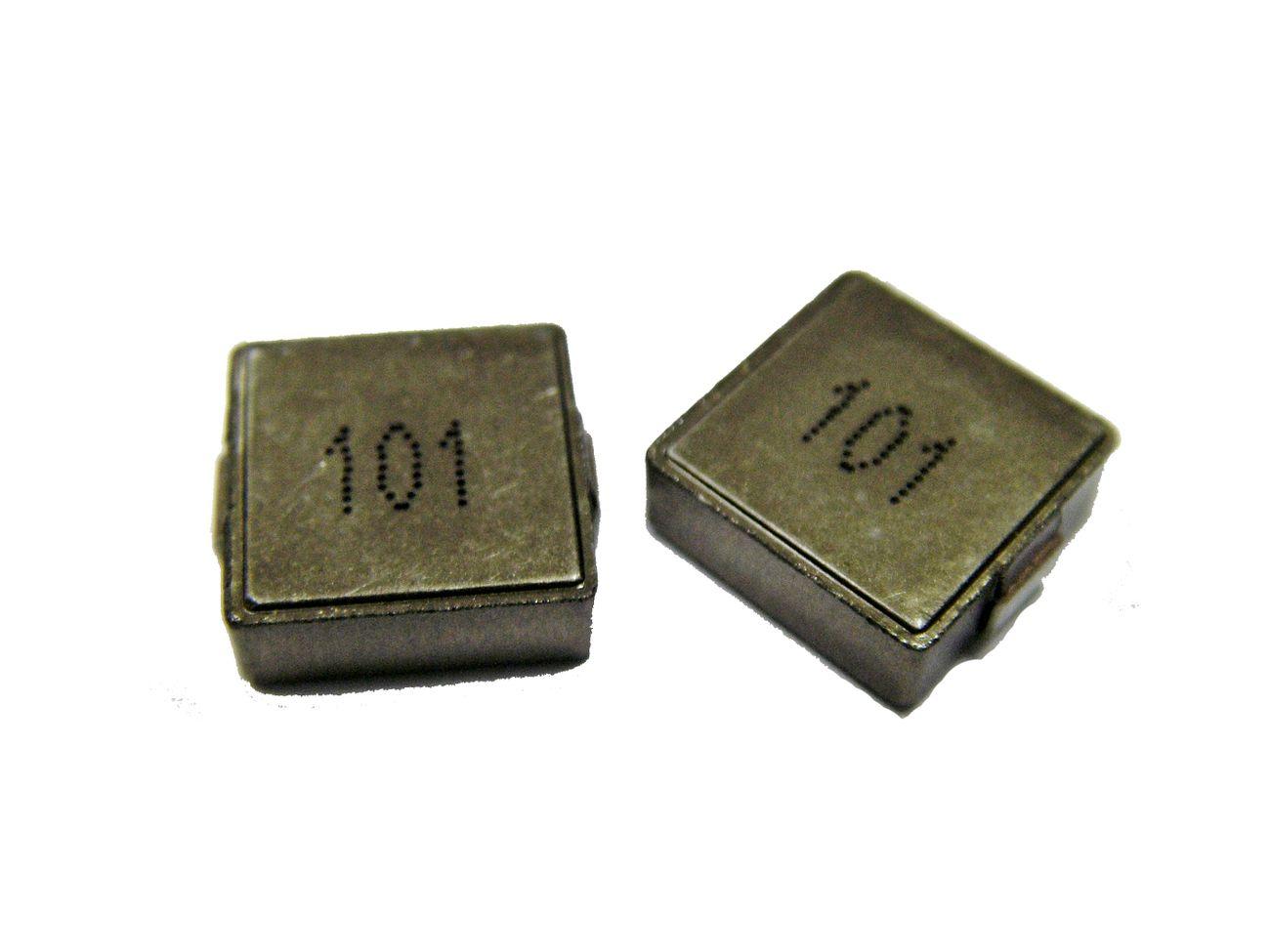

HA72L-1040XXLF

SMD power inductor

Brand:

BI Technologies

Quote Request
Data Sheet

Specifications

Mounting SM
Shape X
Length 10.3mm
Width 11.5mm
Height 4mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min 0.2uH
Inductance Max 100uH
Rated Current @ 25°C ambient Min 2.3A
Rated Current @ 25°C ambient Max 46A
Saturation Current @ 25°C ambient Min -
Saturation Current @ 25°C ambient Max -
DC Resistance Min 0.8mΩ
DC Resistance Max 270mΩ
Operating Temperature Min -55°C
Operating Temperature Max 155°C
Application
  • LED drivers
  • Automotive LCD/LED displays
  • Engine and transmission control units
  • Diesel injection drivers
  • DC/DC converters for entertainment/navigation systems
  • Noise suppression for motors
  • Braking
  • Windshield wipers
  • Power steering
  • Seats and mirrors
  • Heating and ventilation blowers
AEC-Q200 Certified True
