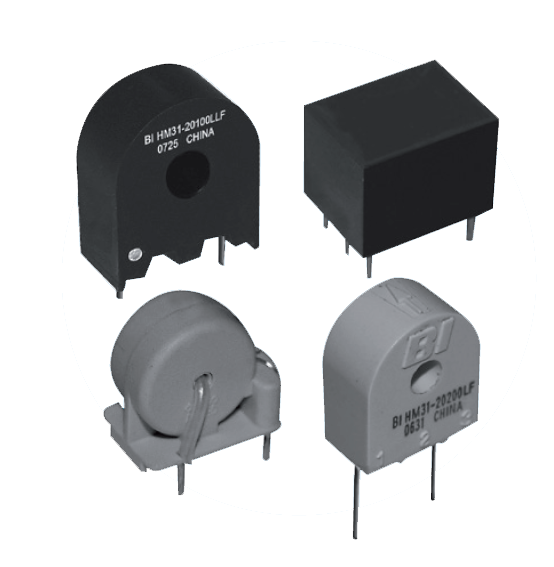

HM31-10XXXLF

Encapsulated current sense transformer

Brand:

BI Technologies

Quote Request
Data Sheet

Specifications

Mounting TH
Shape Toroidal
Length 23mm
Width 15mm
Height 20mm
Inductance Type -
Packaging Options Bulk
RoHS Compliant Yes
Inductance Min 5000uH
Inductance Max -
Rated Current @ 25°C ambient Min -
Rated Current @ 25°C ambient Max 5A
Saturation Current @ 25°C ambient Min -
Saturation Current @ 25°C ambient Max -
DC Resistance Min -
DC Resistance Max 1.4Ω
Operating Temperature Min -25°C
Operating Temperature Max 105°C
Application Current sense
AEC-Q200 Certified False
