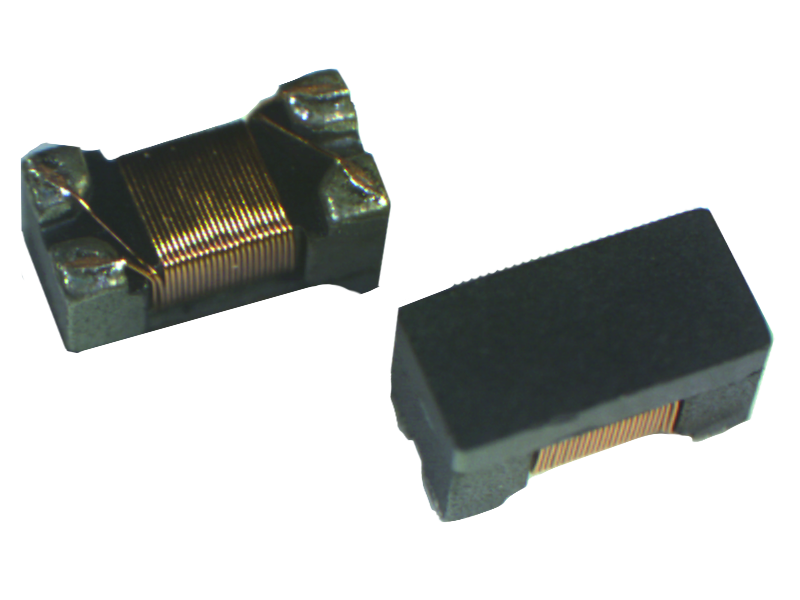

HM67-3216XXXLF

Surface mount common mode choke

Brand:

BI Technologies

Quote Request
Data Sheet

Specifications

Mounting SM
Shape Chip Bead
Length 3.2mm
Width 1.6mm
Height 1.8mm
Inductance Type -
Packaging Options Tape & Reel
RoHS Compliant Yes
Inductance Min -
Inductance Max -
Rated Current @ 25°C ambient Min 0.2A
Rated Current @ 25°C ambient Max 0.4A
Saturation Current @ 25°C ambient Min -
Saturation Current @ 25°C ambient Max -
DC Resistance Min 300mΩ
DC Resistance Max 1.2Ω
Operating Temperature Min -40°C
Operating Temperature Max 125°C
Application CAN bus
AEC-Q200 Certified False
