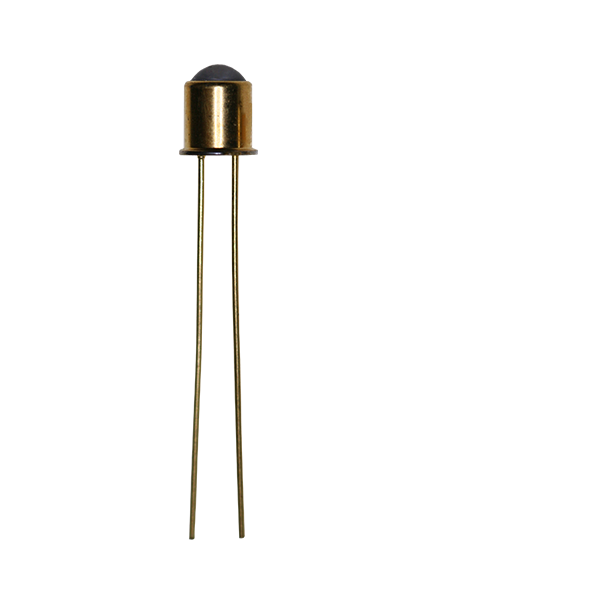

OP236TX
Infrared LED
Lifecycle:
Active (Mature)
Brand:
Optek Technology
TO-78 hermetically sealed package
High current transfer ratio
1 kV electrical isolation
Base contact provided for conventional transistor biasing
JAN, JANTX and JANTXV devices processed to MIL-PRF-19500
Patent No. 4124860
Specifications
| Applications |
|
|---|---|
| Packaging | TO-46 Dome Lens |
| Lead Spacing | 0.100" |
| Component Type | Infrared LED |
| High Reliability | True |
| Screening Level | Military (TX, TXV) |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | GaAlAs |
| Color | - |
| Lead Length Min | 0.5" |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | 18° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 3.5 / -mW / cm2 |
| Operating Temperature | -55°C ~ 125°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | 2T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 50 / 100mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
