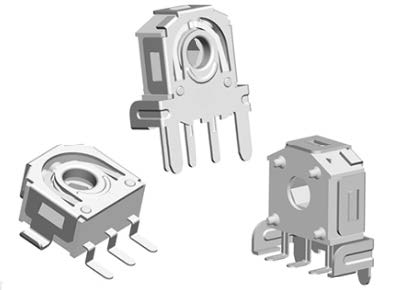

EN05VT
5mm Encoder
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
EN05
Compact design
2 bits gray code
Incremental/contacting type
Plastic Hollow Shaft
Vertical and Horizontal mount versions
Specifications
| Series | EN05 |
|---|---|
| Example MPN | EN05VT1212NHH |
| Adjustment Orientation | Side |
| Switch Option | False |
| Applications |
|
| Size | 5mm |
|---|---|
| Detents per Turn | 12 |
| Bushing | None |
| Shaft Material | Plastic |
| Operating Speed, Max | 60RPM |
| Total Mechanical Travel | Continuous |
| Rotational Torque of Detent, Max | - |
| Switching Operating Force, Max | - |
| Switch Travel, Max | - |
| IP Rating | - |
| Encoder Operating Life | - |
| Encoder Operating Life | 100,000cycles |
| Switch Operation Life | - |
| Pulses per Turn | 12 |
|---|---|
| Closed Circuit Resistance, Max | - |
| Operating Current, Max | 1mA |
| Operating Voltage | - |
| Dielectric Strength | 50V |
| Insulation Resistance, Min | 50MMΩ |
| Contact Resistance | - |
| Sliding noise (at 60 RPM), Max | 5ms |
| Chatter | - |
| Contact Bounce (at 15 RPM), Max | 5ms |
| Switch Contact Resistance | - |
| Actual Electrical Travel | Continuous |
| Operating Temperature Range | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
