EN09

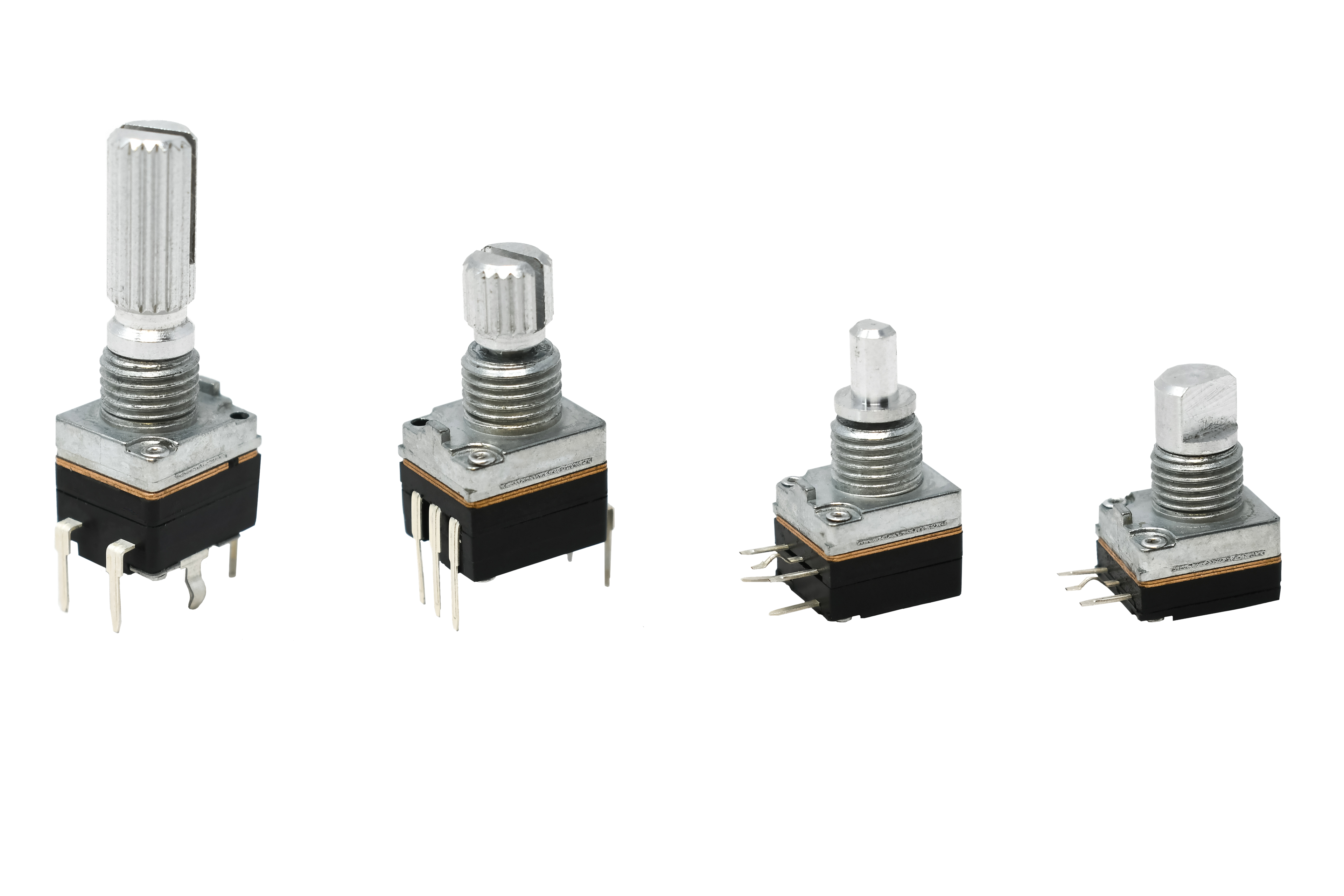

OBSOLETE Rotary Encoder
Compact design
360° continuous rotation
Momentary push switch option
Switch life 30,000 cycles minimum
Vertical and horizontal mount versions
Specifications
| Series | EN09 |
|---|---|
| Example MPN | EN09V10207SFS010 |
| Adjustment Orientation | Side or Top |
| Switch Option | True |
| Applications |
|
| Size | 9mm |
|---|---|
| Detents per Turn | 20 |
| Bushing | Threaded |
| Shaft Material | Metal |
| Operating Speed, Max | 60RPM |
| Total Mechanical Travel | Continuous |
| Rotational Torque of Detent, Max | - |
| Switching Operating Force, Max | 600-1200gf |
| Switch Travel, Max | - |
| IP Rating | - |
| Encoder Operating Life | - |
| Encoder Operating Life | 20,000cycles |
| Switch Operation Life | 30,000actuations |
| Pulses per Turn | 10 |
|---|---|
| Closed Circuit Resistance, Max | - |
| Operating Current, Max | 10mA |
| Operating Voltage | - |
| Dielectric Strength | 300V |
| Insulation Resistance, Min | 100MΩ |
| Contact Resistance | - |
| Sliding noise (at 60 RPM), Max | 2ms |
| Chatter | - |
| Contact Bounce (at 15 RPM), Max | 2ms |
| Switch Contact Resistance | - |
| Actual Electrical Travel | Continuous |
| Operating Temperature Range | -40 to +85°C |
| Lifecycle | Obsolete |
|---|---|
| EOL Estimate | EOL in May 2022 |
| Latest PCN Date | 03 May 22 |
| Alternative Part Number | None |
