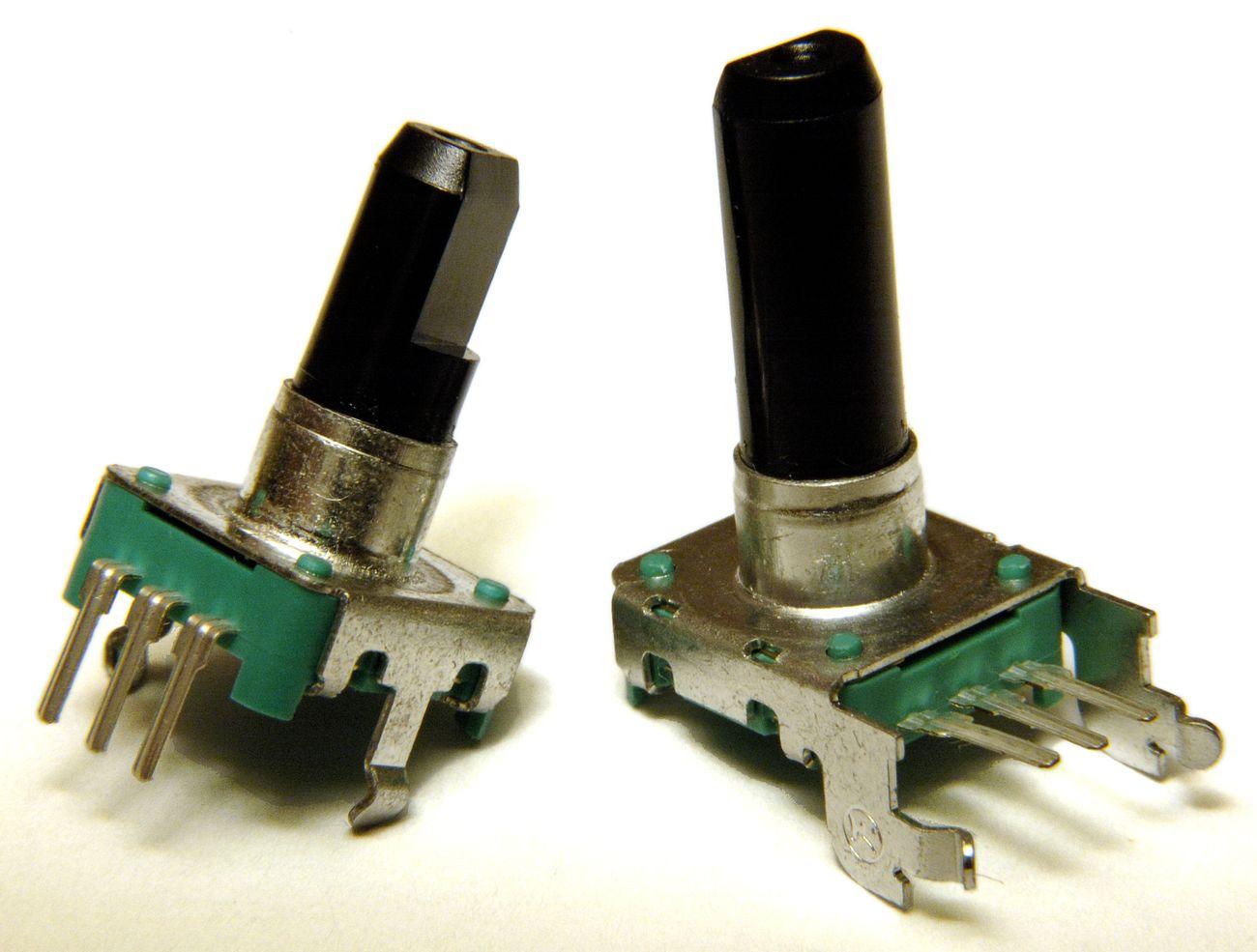

EN12-VN
Rotary Encoder
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
EN12
12 mm
2 bits gray code
Incremental/contacting type
Metal bushing/shaft
Push-on switch option
Specifications
| Series | EN12 |
|---|---|
| Example MPN | EN12-VN11AF20 |
| Adjustment Orientation | Side |
| Switch Option | False |
| Applications | Audio/video control, Navigation systems, Test instrumentation, Speed control, Menu selection |
| Size | 12mm |
|---|---|
| Detents per Turn | 0, 12, 24 |
| Bushing | Plain |
| Shaft Material | Plastic |
| Operating Speed, Max | 100RPM |
| Total Mechanical Travel | Continuous |
| Rotational Torque of Detent, Max | 1.4oz-in |
| Switching Operating Force, Max | 550g |
| Switch Travel, Max | 0.5mm |
| IP Rating | - |
| Encoder Operating Life | - |
| Encoder Operating Life | 30,000cycles |
| Switch Operation Life | - |
| Pulses per Turn | 12, 24 |
|---|---|
| Closed Circuit Resistance, Max | 3Ω |
| Operating Current, Max | 1mA |
| Operating Voltage | - |
| Dielectric Strength | 300V |
| Insulation Resistance, Min | 100MΩ |
| Contact Resistance | - |
| Sliding noise (at 60 RPM), Max | 2ms |
| Chatter | - |
| Contact Bounce (at 15 RPM), Max | 5ms |
| Switch Contact Resistance | 100m |
| Actual Electrical Travel | Continuous |
| Operating Temperature Range | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
