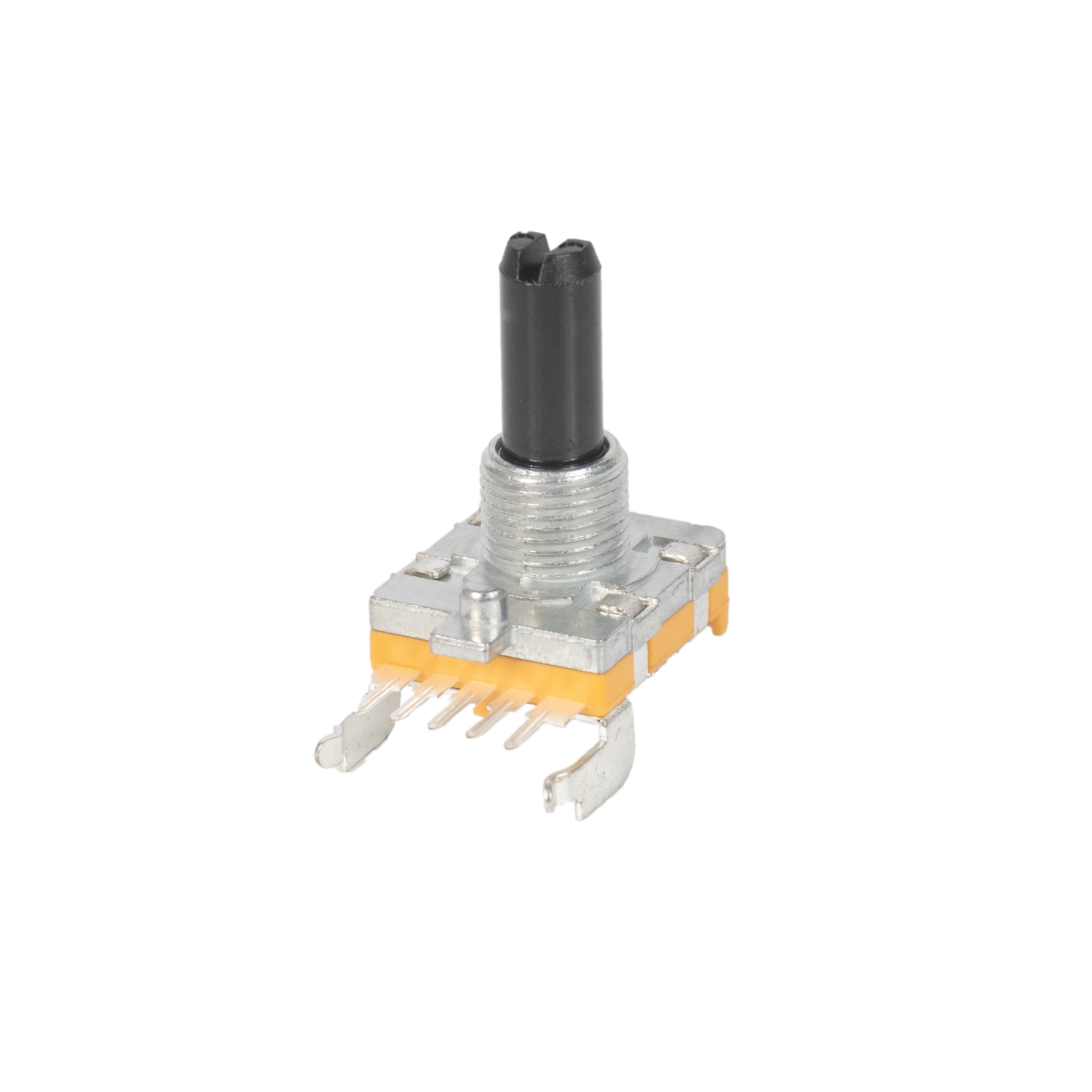

EN16ABVM
Absolute Encoder
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
EN16AB
16 mm rotary encoder
4 bit gray code
absolute type
flatted shaft
RoHS compliant
Specifications
| Series | EN16AB |
|---|---|
| Example MPN | EN16ABVM11BF23 |
| Adjustment Orientation | Side |
| Switch Option | False |
| Applications | Home Appliances, Audio/video control, Navigation systems, Test instrumentation, Speed control, Menu selection |
| Size | 16mm |
|---|---|
| Detents per Turn | 16 |
| Bushing | Threaded |
| Shaft Material | Plastic |
| Operating Speed, Max | - |
| Total Mechanical Travel | Continuous |
| Rotational Torque of Detent, Max | 30-200oz-in |
| Switching Operating Force, Max | - |
| Switch Travel, Max | - |
| IP Rating | IP51 |
| Encoder Operating Life | 30,000cycles |
| Encoder Operating Life | 30,000cycles |
| Switch Operation Life | - |
| Pulses per Turn | 16 |
|---|---|
| Closed Circuit Resistance, Max | - |
| Operating Current, Max | 4mA |
| Operating Voltage | 12V |
| Dielectric Strength | 50V |
| Insulation Resistance, Min | 10MΩ |
| Contact Resistance | 100m |
| Sliding noise (at 60 RPM), Max | - |
| Chatter | - |
| Contact Bounce (at 15 RPM), Max | - |
| Switch Contact Resistance | - |
| Actual Electrical Travel | Continuous |
| Operating Temperature Range | -10 to +70°C |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
