8148

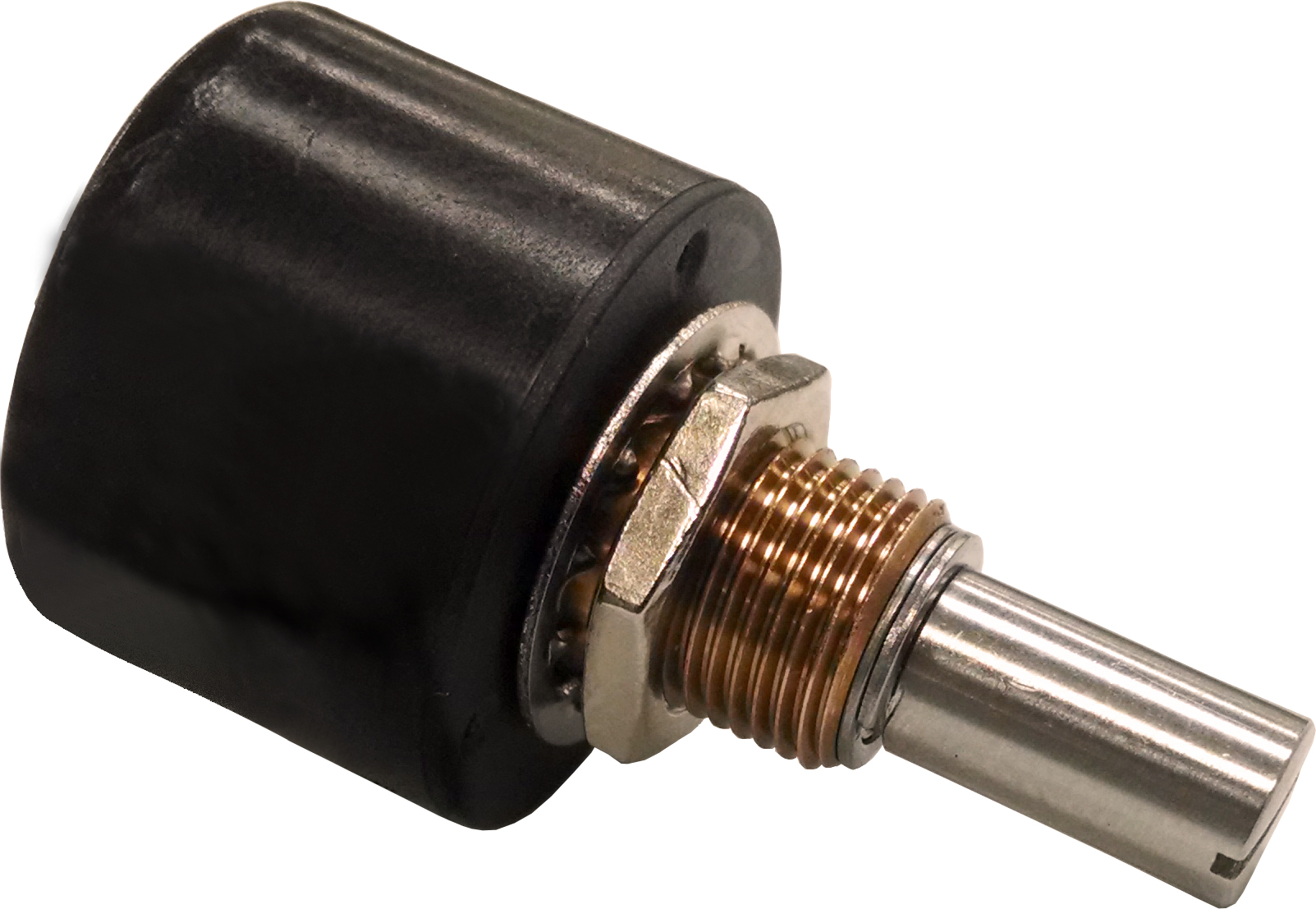

Multi-Turn Precision Pot, 1/4" shaft, heavy side load
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
8140
7/8" diameter
10-turn
Hybrid
Specifications
| Series | 8140 |
|---|---|
| Type of Potentiometer | Precision rotary pot |
| Element Material | Hybrid |
| Example MPN | 8148R10KT5L.25 |
| Number of Gangs | 1 to 2 |
| Adjustment Orientation | - |
| Size (dia. / length) | 22.2mm |
|---|---|
| Number of Turns | 10 |
| Cycle Life, Min | 2,000,000 |
| Total Rotational Travel | - |
| Rotational Torque | - |
| IP Rating | - |
| Resistance min | 1kΩ |
|---|---|
| Resistance max | 100kΩ |
| Standard Resistance Tol | 10% |
| Power Rating | 2W |
| Standard Linearity | 0.25% |
| Operating Temperature | - |
| Electrical Angle | - |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
