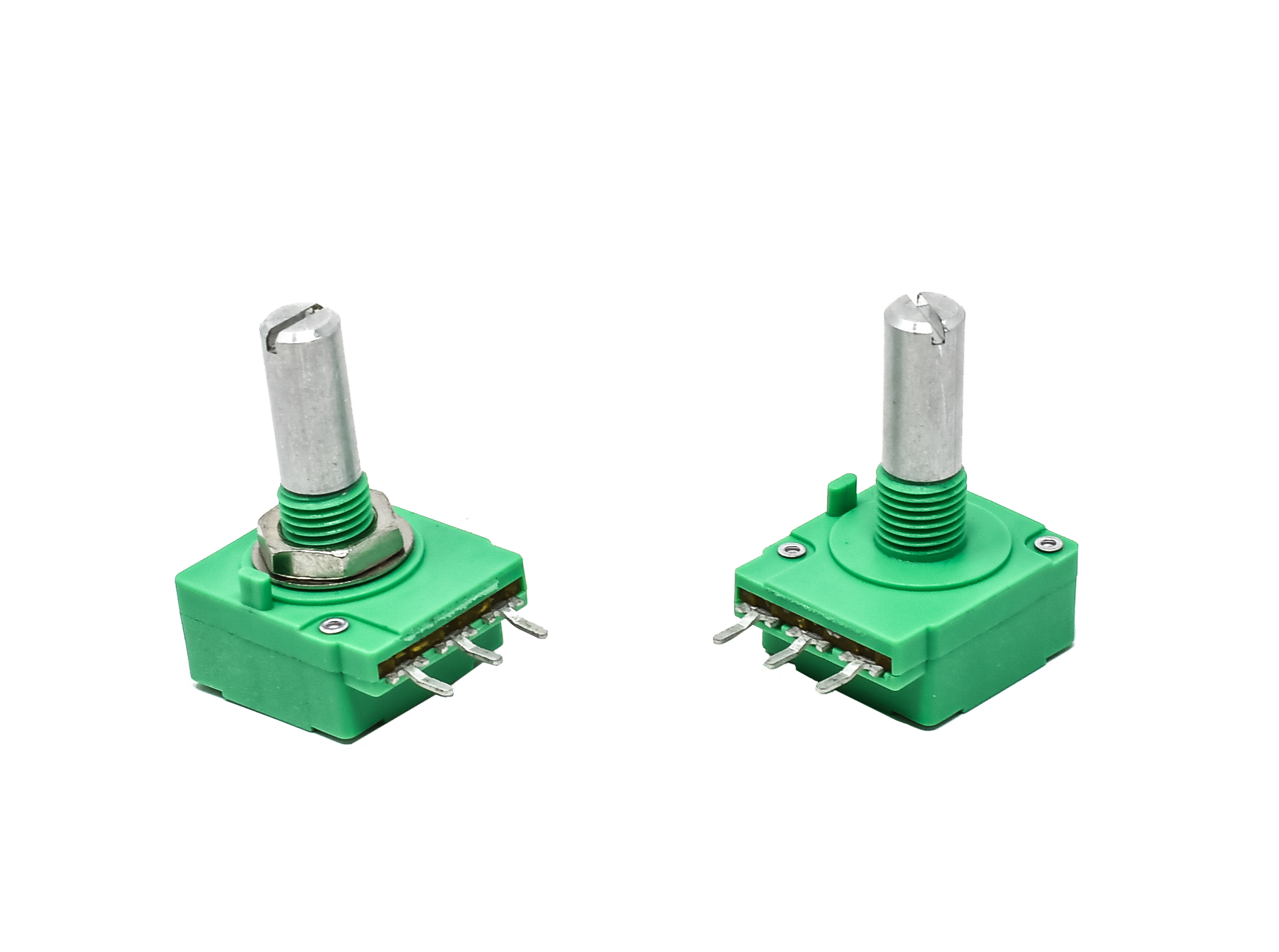

P166V
Rotary Pot, side adjust, 1 gang, plastic housing, pins
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
P166
16 mm rotary potentiometer
plastic body
metal shaft
IP50
Specifications
| Series | P166 |
|---|---|
| Type of Potentiometer | Panel rotary pot |
| Element Material | Conductive plastic |
| Example MPN | P166V10Q1CB10K |
| Number of Gangs | 1 |
| Adjustment Orientation | Side |
| Size (dia. / length) | 16mm |
|---|---|
| Number of Turns | 1 |
| Cycle Life, Min | 100,000 |
| Total Rotational Travel | - |
| Rotational Torque | - |
| IP Rating | - |
| Resistance min | 1kΩ |
|---|---|
| Resistance max | 1MΩ |
| Standard Resistance Tol | 20% |
| Power Rating | 0.2W |
| Standard Linearity | - |
| Operating Temperature | - |
| Electrical Angle | - |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
