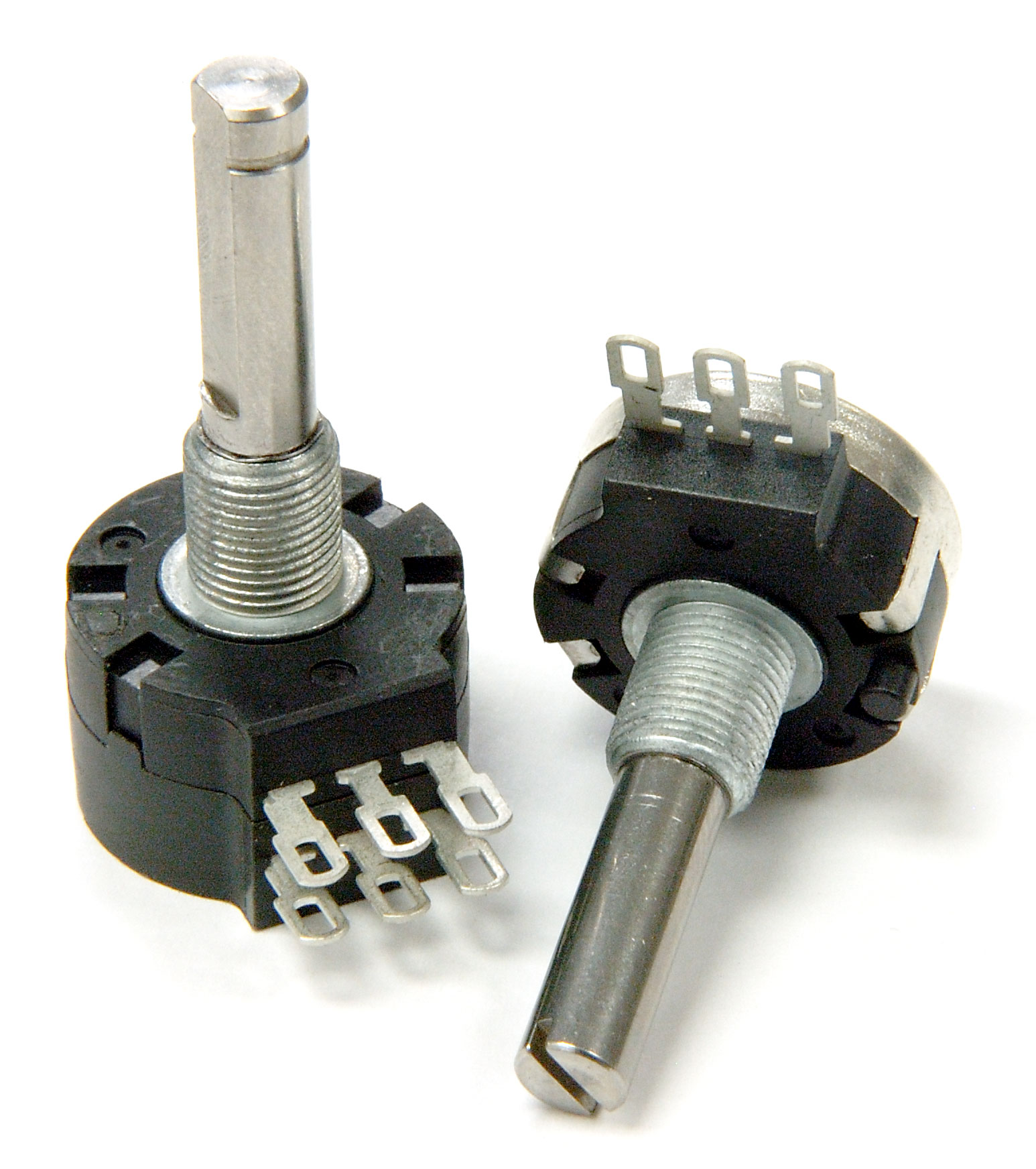

P233
Panel Pot, side adjust, 2 gangs, solder lugs
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
P232-P233
24 mm rotary
Sealed / dust proof
Long life element
2 million cycle life
Metal shaft / bushing
Specifications
| Series | P232-P233 |
|---|---|
| Type of Potentiometer | Panel rotary pot |
| Element Material | Conductive plastic |
| Example MPN | P233-SEC20BR100K |
| Number of Gangs | 2 |
| Adjustment Orientation | Side |
| Size (dia. / length) | 24mm |
|---|---|
| Number of Turns | 1 |
| Cycle Life, Min | 1,000,000 |
| Total Rotational Travel | - |
| Rotational Torque | - |
| IP Rating | - |
| Resistance min | 1kΩ |
|---|---|
| Resistance max | 1MΩ |
| Standard Resistance Tol | 10% |
| Power Rating | 0.5W |
| Standard Linearity | - |
| Operating Temperature | - |
| Electrical Angle | - |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
