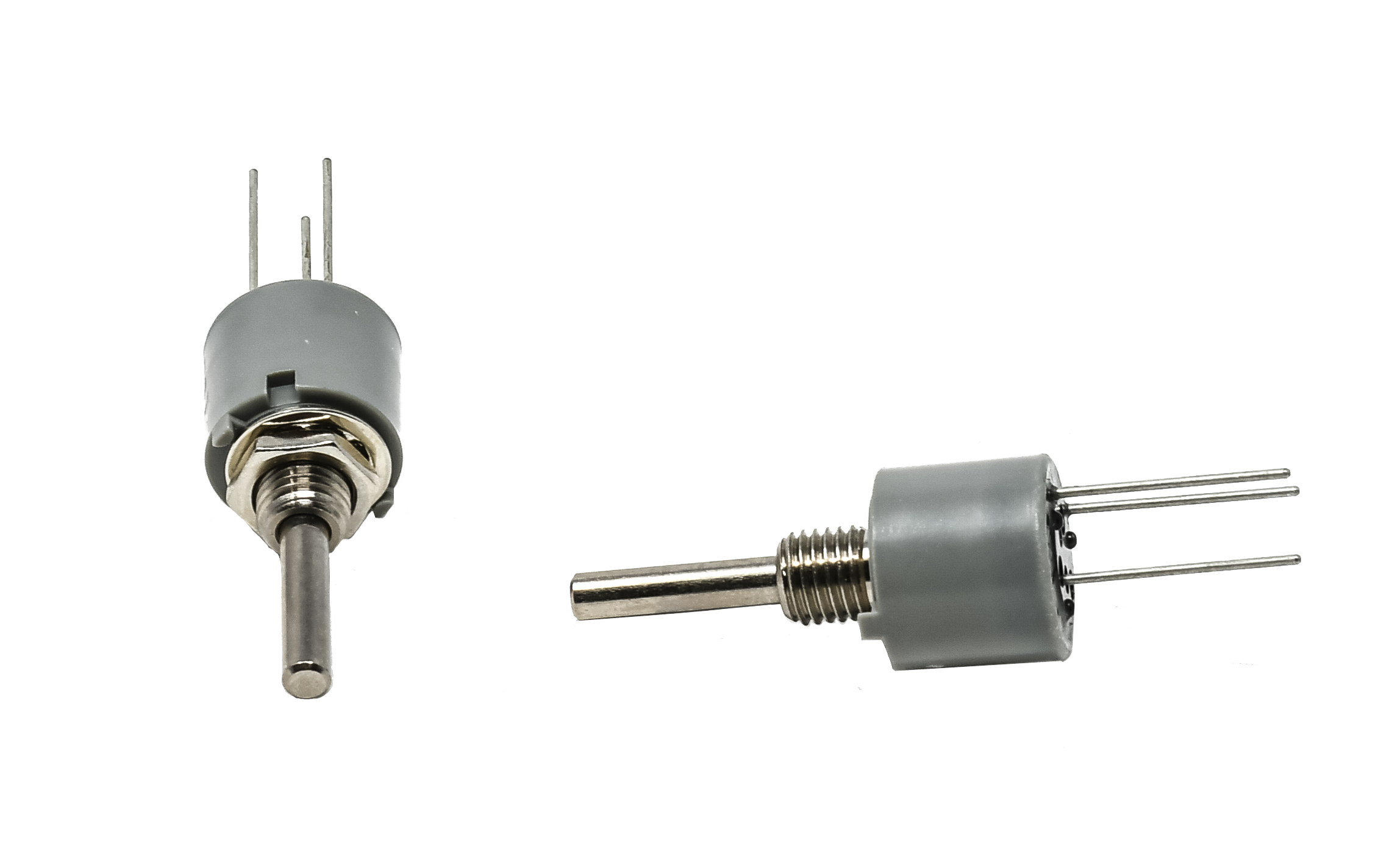

P265S

Rotary Pot, top adjust, 1 gang, solder hooks

Lifecycle:

Active (Mature)

Brand:

BI Technologies

Series:

P265

Distributor Inventory
Data Sheet
checkmark

1/2" Round rotary potentiometer

checkmark

plastic body

checkmark

metal shaft

checkmark

IP64

Specifications

Series P265
Type of Potentiometer Panel rotary pot
Element Material Conductive plastic
Example MPN P265S11S20NCB10K
Number of Gangs 1
Adjustment Orientation Top
Size (dia. / length) 12.7mm
Number of Turns 1
Cycle Life, Min 1,000,000
Total Rotational Travel -
Rotational Torque -
IP Rating -
Resistance min 500Ω
Resistance max 1MΩ
Standard Resistance Tol 10%
Power Rating 0.5W
Standard Linearity -
Operating Temperature -
Electrical Angle -
Maximum Operating Voltage -
Lifecycle Active (Mature)
EOL Estimate No EOL planned
Latest PCN Date 7 Dec 22
Alternative Part Number -
