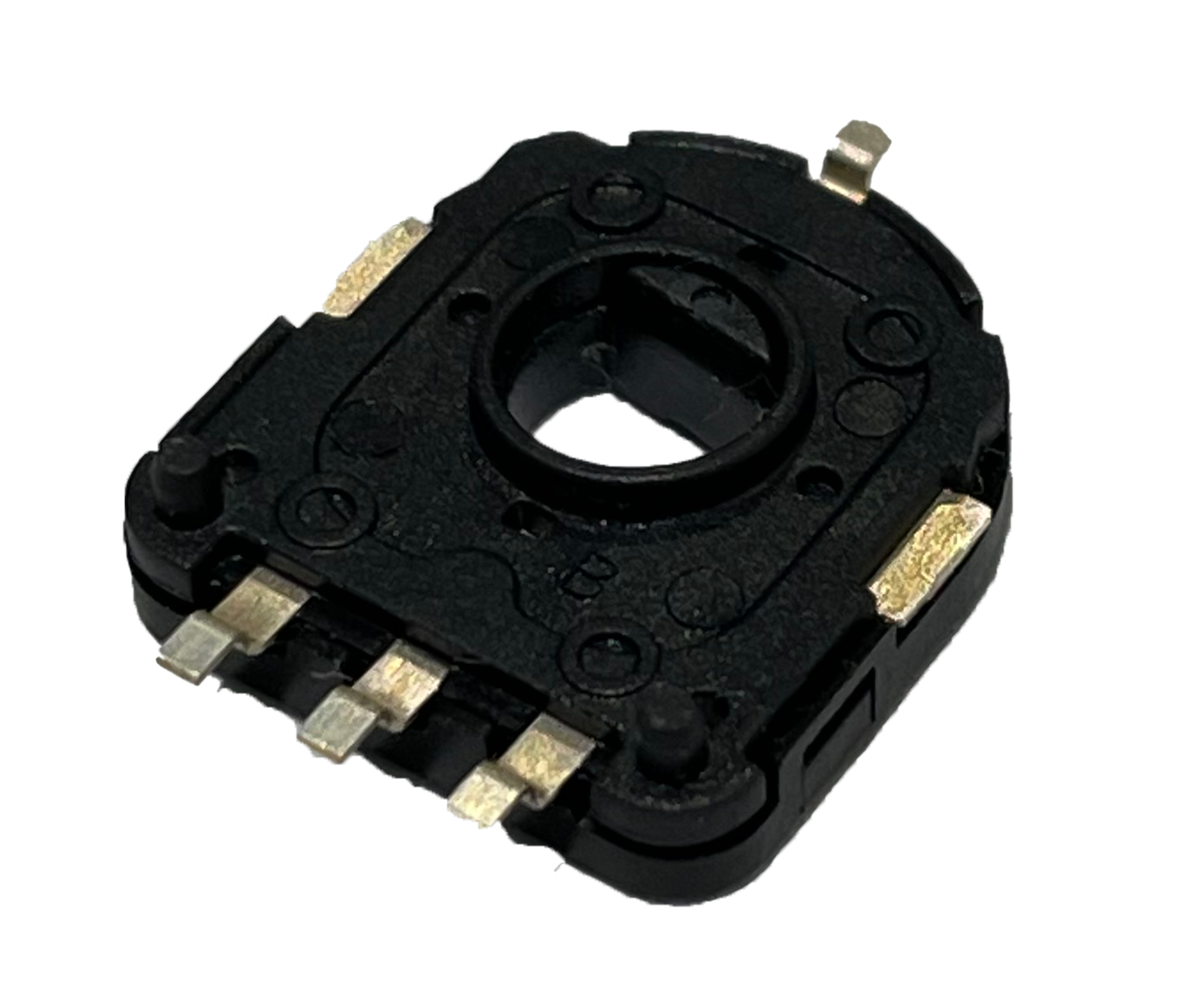

PHS11R
Hollow Shaft Pot
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
PHS11R
Conductive plastic
Hollow Shaft
Surface Mount
Specifications
| Series | PHS11R |
|---|---|
| Type of Potentiometer | Hollow shaft rotary pot |
| Element Material | Conductive plastic |
| Example MPN | PHS11R-1DBR5KE320 |
| Number of Gangs | 1 |
| Adjustment Orientation | Top |
| Size (dia. / length) | 11mm |
|---|---|
| Number of Turns | 1 |
| Cycle Life, Min | 1,000,000 |
| Total Rotational Travel | 360° |
| Rotational Torque | 0-30 |
| IP Rating | IP40 |
| Resistance min | 1kΩ |
|---|---|
| Resistance max | 100kΩ |
| Standard Resistance Tol | 20% |
| Power Rating | 0.1W |
| Standard Linearity | 2 to 5% |
| Operating Temperature | -40 to +120 |
| Electrical Angle | 60-341° |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
