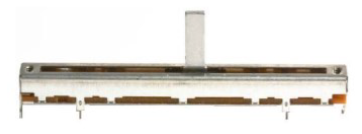

PS100-1
Slide Pot, 100mm travel, 1 gang
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
PS100
Single / dual gang
100 mm travel
100,000 cycle life
Metal shaft
Specifications
| Series | PS100 |
|---|---|
| Type of Potentiometer | Slide pot |
| Element Material | Conductive plastic |
| Example MPN | PS100-1B1BR100K |
| Number of Gangs | 1 |
| Adjustment Orientation | Top |
| Size (dia. / length) | 128mm |
|---|---|
| Number of Turns | 1 |
| Cycle Life, Min | 5,000 |
| Total Rotational Travel | - |
| Rotational Torque | - |
| IP Rating | - |
| Resistance min | 500Ω |
|---|---|
| Resistance max | 1MΩ |
| Standard Resistance Tol | 20% |
| Power Rating | 0.25W |
| Standard Linearity | - |
| Operating Temperature | - |
| Electrical Angle | - |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
