PSM050S-10

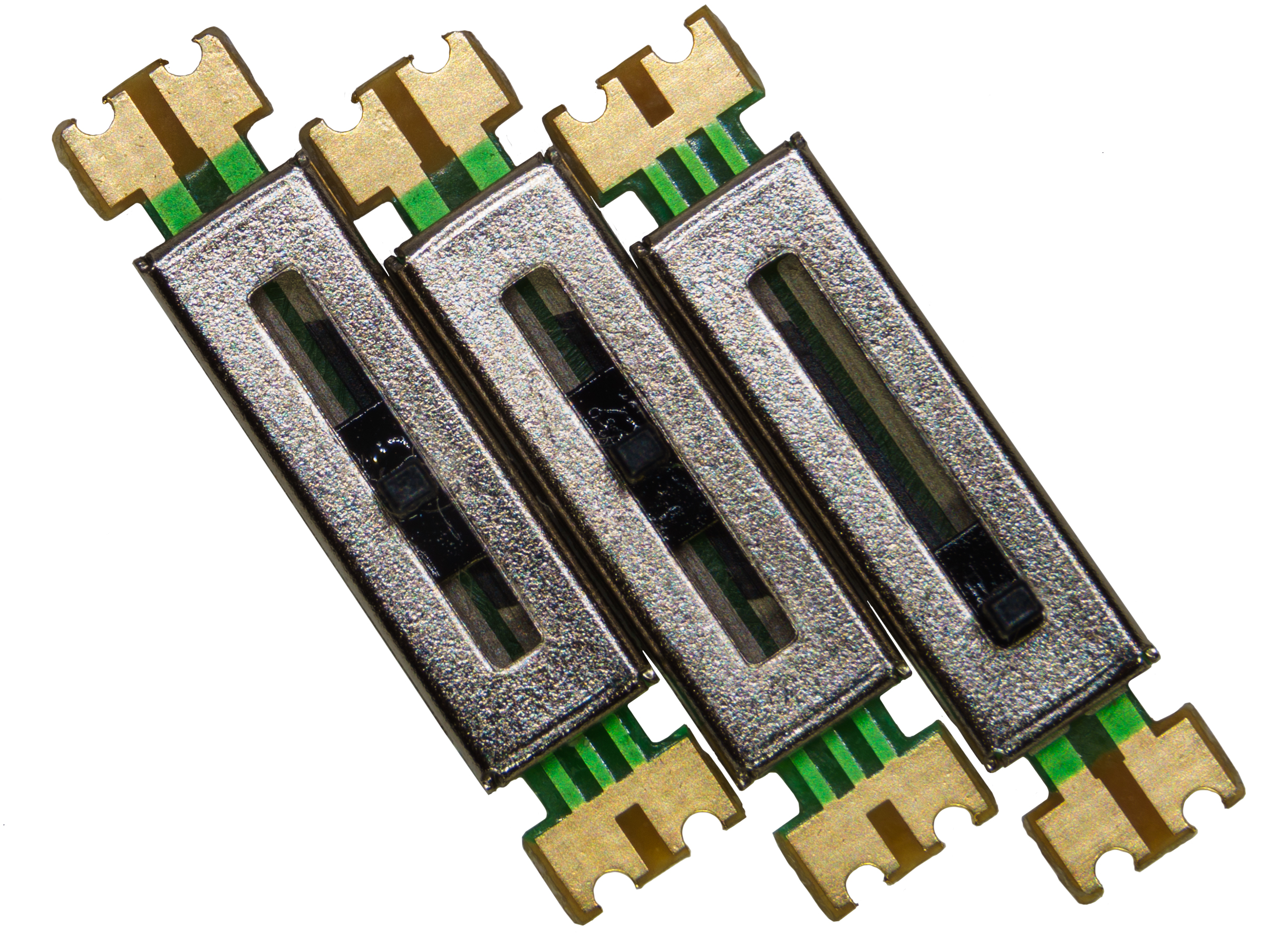

OBSOLETE Miniature Slide Pot, 10mm travel, SMD

Lifecycle:

Obsolete

Brand:

BI Technologies

Series:

PSM

Alternative Part Number:

None

Distributor Inventory
Data Sheet
checkmark

Microminiature package

checkmark

Smooth slide

checkmark

Long operational life

Specifications

Series PSM
Type of Potentiometer Slide pot
Element Material Carbon
Example MPN PSM050S-10B10KB
Number of Gangs 1
Adjustment Orientation Top
Size (dia. / length) 23.5mm
Number of Turns 1
Cycle Life, Min 100,000
Total Rotational Travel -
Rotational Torque -
IP Rating -
Resistance min 500Ω
Resistance max 50kΩ
Standard Resistance Tol 20%
Power Rating 0.01W
Standard Linearity -
Operating Temperature -
Electrical Angle -
Maximum Operating Voltage -
Lifecycle Obsolete
EOL Estimate EOL in May 2022
Latest PCN Date 3 May 22
Alternative Part Number None
