PEAD250B-19-1

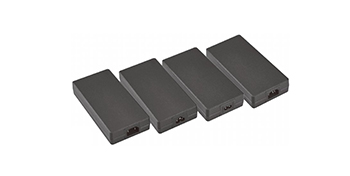

Desktop Power Supply 56V 250W *New Slimline Design*
Lifecycle:
Mature
Series:
PEAD250B
Class I and Class II input versions
100 - 240VAC universal input
Active PFC function
Short circuit/over-voltage/over-current/over-temperature (optional)
Energy Efficiency Level VI or CoC Tier II
No load power consumption ≤0.15W (Tier II)
Specifications
| Output Power | 250W |
|---|---|
| Output Voltage 1 | 56V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 4.56A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C14 |
| Output Connector | Molex |
| Class |
|
| Temperature | 0-60C |
| Dimensions | - |
