PEAD72S-19-1-B2

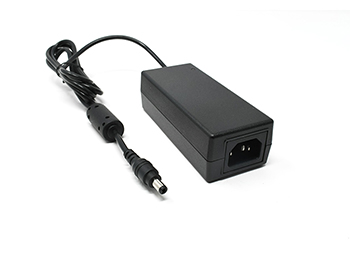

Desktop Power Supply 56V 72 Watt
Lifecycle:
Mature
Series:
PEAD72
Class I and Class II Versions
Efficiency Level VI
CoC Tier 2**
LED on Indicator
Overload Protection
Short Circuit Protection
No Load Operation
100% Burn-In/Hi-Pot Testin
RoHS Compliant
Specifications
| Output Power | 72W |
|---|---|
| Output Voltage 1 | 56V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 1.28A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C6 |
| Output Connector | 2.5mm |
| Class |
|
| Temperature | 0-60C |
| Dimensions | 49x113x35mm |
