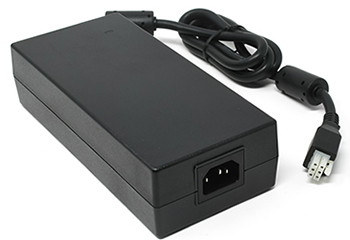

PEAMD250F-12
Medical Desktop Power Supply 12V 220 Watt
Lifecycle:
NRND
Series:
PEAMD250
IEC 60601-1-2 4th Edition EMC Compliant
Class I and Class II versions
Meets Efficiency Level VI Requirements
<210mW No Load Power Consumption
BF Rated Output on Class II Versions
LED on Indicator
Overload Protection
Short Circuit Protection
Over-temperature Protection
No Load Operation
Specifications
| Output Power | 220W |
|---|---|
| Output Voltage 1 | 12V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 18.33A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C18 |
| Output Connector | Molex |
| Class |
|
| Temperature | 0-60 (100% @40 linear drop to 50% @60)C |
| Dimensions | 84.5x182x46mm |
