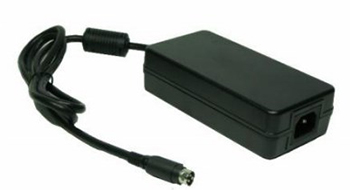

PMP105F-16

Medical Desktop Power Supply 30-32V 105 Watt

Lifecycle:

Mature

Series:

PMP105

Quote Request
Data Sheet
checkmark

Low safety ground leakage current

checkmark

Wide input range 90 to 264 VAC

checkmark

Optional output connectors

checkmark

100% burn-in at full load

checkmark

Overvoltage protection

checkmark

Over-temperature protection

checkmark

Overcurrent protection

checkmark

Compliant with CEC and Energy Star Efficiency Level V requirements

checkmark

No load power consumption less than 0.5W

checkmark

Average active efficiency greater than 87%

checkmark

Compliant with RoHs requirements

checkmark

IEC 60601-2-4th Edition EMC Compliant

Specifications

Output Power 105W
Output Voltage 1 30-32V
Output Voltage 2 -
Output Voltage 3 -
Output Current 3.5A
Output Current 2 -
Output Current 3 -
Input Connector C18
Output Connector DIN
Class
  • I
  • II
Temperature 0-60 (100% @40 linear drop to 50% @60)C
Dimensions 75.2x146.2x39mm
