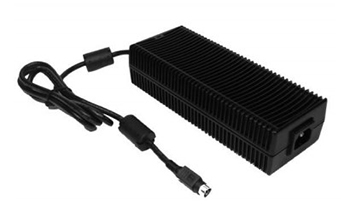

PMP150-13-2

Medical Desktop Power Supply 19V 150 Watt

Lifecycle:

NRND

Series:

PMP150

Quote Request
Data Sheet
checkmark

Low Safety ground leakage current

checkmark

Wide input range 90 to 264 VAC

checkmark

Optional output connectors

checkmark

100% burn in

checkmark

Overvoltage protection

checkmark

Over-temperature protection

checkmark

Overcurrent protection

checkmark

Compliant with CEC and Energy Star Efficiency level V requirements (except PMP150-12 and PMP150-13 to level IV)

checkmark

No Load power consumption

checkmark

Average active efficiency ≥ 87%

checkmark

Compliant with RoHS Requirements

checkmark

IEC 60601-1-2-4th Edition EMC Compliant

Specifications

Output Power 150W
Output Voltage 1 19V
Output Voltage 2 -
Output Voltage 3 -
Output Current 7.9A
Output Current 2 -
Output Current 3 -
Input Connector C14
Output Connector DIN
Class
  • I
  • II
Temperature 0-60 (100% @40 linear drop to 50% @60)C
Dimensions 82x207.6x49.7mm
