PMP220F-14

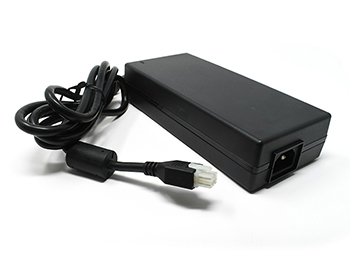

Medical Desktop Power Supply 24V 220 Watt
Lifecycle:
Mature
Series:
PMP220
High efficiency
Low ripple & noise
Overvoltage protection
Short-circuit protection
Overcurrent protection
Over-temperature protection
100% burn-in at full rated load
Standby consumption less than 0. 5W
Compliant with CEC and ENERGY STAR efficiency level V requirements
C170 Compliant with RoHS requirements
IEC 60601-1-2 4th Edition EMC Compliance
Specifications
| Output Power | 220W |
|---|---|
| Output Voltage 1 | 24V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 9.17A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C18 |
| Output Connector | Molex |
| Class |
|
| Temperature | 0-60 (100% @40 linear drop to 50% @60)C |
| Dimensions | 88.6x197.6x43.6mm |
