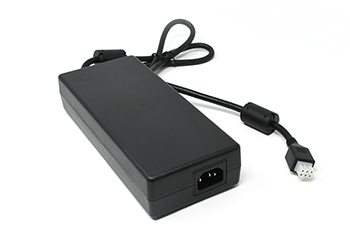

PMP250F-19
Medical Desktop Power Supply 54V 250 Watt
Lifecycle:
Mature
Series:
PMP250
BF class insulation
Operating altitude up to 5000 meters
Compliant with DoE level VI / CoC EPS V5 tier 2 requirements
No load power consumption less than 0.15W
With PFC circuit
Wide input range 80 to 264 VAC
100% burn-in
Overvoltage protection
Overcurrent protection
Compliant with RoHS requirements
Specifications
| Output Power | 250W |
|---|---|
| Output Voltage 1 | 54V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 4.63A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C18 |
| Output Connector | Molex |
| Class |
|
| Temperature | -20-60 (100% @40 linear drop to 50% @60)C |
| Dimensions | 87.6x204x41.5mm |
