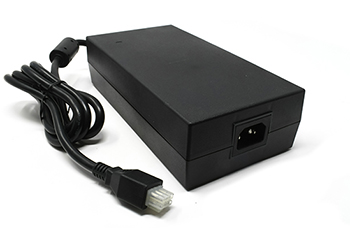

PMP400-13-1-S
Medical Desktop Power Supply 18V 400 Watt
Lifecycle:
Mature
Series:
PMP400
BF Class insulation
Operation altitude up to 5000 meters
Wide input range 90 to 264VAC
Low safety ground leakage current
Less than 300 μA leakage current
Efficiency greater than 85%
Overvoltage Protection
Over-temperature Protection
Short-Circuit Protection
Compliant with RoHs requirements
IEC 60601-1-2 4th Edition EMC Compliant
Specifications
| Output Power | 400W |
|---|---|
| Output Voltage 1 | 18V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 22.23A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C6 |
| Output Connector | Molex |
| Class | I |
| Temperature | -10-60 (100% @40 linear drop to 50% @60)C |
| Dimensions | 120x250x49.3mm |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PMP400 |
