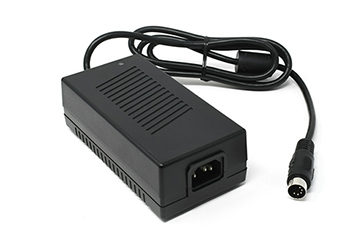

PMP60-30
Medical Desktop Power Supply 3.3-12V 30 Watt
Lifecycle:
Mature
Series:
PMP60
Dual or Triple outputs
Optional output connectors, Optional on/off switch
100% burn in
Wide input range 90-264VAC
Input surge current protection
Overvoltage protection
Over-temperature protection
Overcurrent protection
Energy Star Efficiency level IV requirem ents
No load power consumption less than 0. 5 W
Average active efficiency ≧85%
Compliant with RoHS requirement
IEC 60601-1-2 4th Edition EMC Compliant
Specifications
| Output Power | 30W |
|---|---|
| Output Voltage 1 | 3.3V |
| Output Voltage 2 | 5V |
| Output Voltage 3 | 12V |
| Output Current | 6A |
| Output Current 2 | 3A |
| Output Current 3 | 0.7A |
| Input Connector | C14 |
| Output Connector | DIN |
| Class | I |
| Temperature | 0-60 (100% @40 linear drop to 50% @60)C |
| Dimensions | 75x147x46mm |
