PMP92SF-14

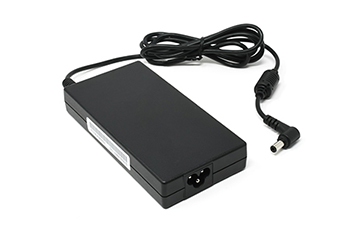

Medical Desktop Power Supply 24V 90 Watt
Lifecycle:
Mature
Series:
PMP92
High efficiency
Operation up to 5000 meters
Low safety ground leakage current
Wide input range 90 to 264 VAC
100% burn-in
Overvoltage protection
Over-temperature protection
Short-circuit protection
Compliant with DOE Efficiency level VI requirement
No load power consumption less than 0. 21 W
Average active efficiency greater than 88%
Compliant with RoHS requirements
IEC 60601-1-2 4th Edition EMC Compliant
Specifications
| Output Power | 90W |
|---|---|
| Output Voltage 1 | 24V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 3.75A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C8 |
| Output Connector | 2.1mm |
| Class |
|
| Temperature | 0-60 (100% @40 linear drop to 50% @60)C |
| Dimensions | 71x140x22mm |
