PPWAMD300-14

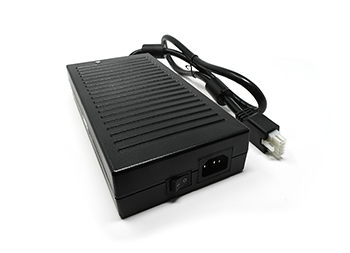

Industrial and Medical Desktop Power Supply 24V 300 Watt
Lifecycle:
Mature
Series:
PPWAMD300
IEC 60601-1-2 4th Edition EMC Compliant
Class I and Class II Versions
Medical and ITE Approvals
Meets Efficiency Level VI Requirements
BF (Body Floating) Rated Output
Overload Protection
Short Circuit Protection
No Load Operation
IP42 Enclosure
Specifications
| Output Power | 300W |
|---|---|
| Output Voltage 1 | 24V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Current | 12.5A |
| Output Current 2 | - |
| Output Current 3 | - |
| Input Connector | C14 |
| Output Connector | Molex |
| Class |
|
| Temperature | -30-60 (Linear increase from 70% @30 to 100% @0, and linear decrease from 100% @40 to 50% @60)C |
| Dimensions | 112x222x45mm |
