PUP25N3-12

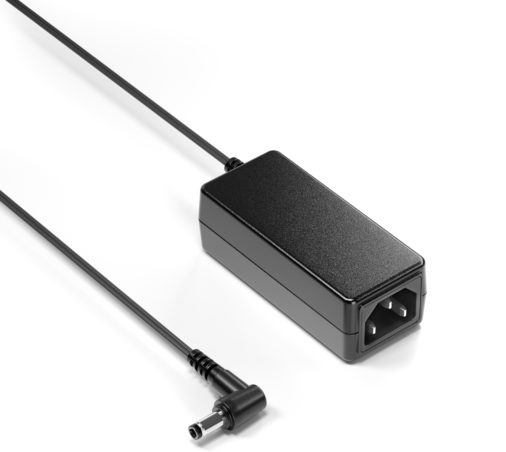

Desktop Power Supply 12V 25 Watt

Lifecycle:

Mature

Series:

PUP25N3

Quote Request
Data Sheet
checkmark

No load power consumption less than 0.075W

checkmark

Compliant with DoE level VI requirements

checkmark

Meets energy star EPS2.0/ErP lot 7

checkmark

Meets EU CoC EPS V5 Tier2

checkmark

Operating altitude up to 5000 meters

checkmark

Overvoltage protection (auto-recovery)

checkmark

Short-circuit protection (auto-recovery)

checkmark

Overcurrent protection (auto-recovery)

checkmark

High Efficiency

checkmark

100% burn-in at full rated load

checkmark

Compliant with RoHS requirements

checkmark

Meets LPS requirements

Specifications

Output Power 25W
Output Voltage 1 12V
Output Voltage 2 -
Output Voltage 3 -
Output Current 2.08A
Output Current 2 -
Output Current 3 -
Input Connector C14
Output Connector 2.5mm
Class I
Temperature 0-40C
Dimensions 38.4x94x29.6mm
