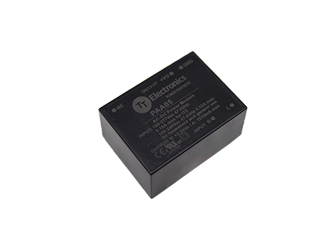

PAA05-12
Encapsulated Power Supply 12V 5.04 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PAA5
Ultra Compact Size 1.46” x 1.08”
Universal Input Range 90-305VAC, 47-440Hz
I/O Isolation 4000VAC
Operating Ambient Temperature Range -40°C to +70°C
No Load Power Consumption <0.1W
EMC Compliant without External Components
Safety Approval to UL/IEC/EN 62368-1, IEC/EN 60335-1, and IEC/EN 61558-2-16
Specifications
| Output Power | 5.04W |
|---|---|
| Output Voltage | 12V |
| Output Current | 0.42A |
| Class | II |
| Temperature | -40°C to +70°C (Linear rise from 80% @-40 to 100% @-30 the linear decline from 100% @50 to 50% @70)C |
| Dimensions | 27.5x37x21mm |
| Product Brand | Power Partners |
