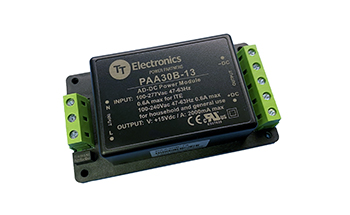

PAA30B-13C
Encapsulated Power Supply 15V 30 Watt, Chassis Mount
Lifecycle:
Mature
Brand:
Power Partners
Series:
PAA30B
Ultra Compact Size: 2.53” x 1.78”
Universal Input Range 90-305VAC, 47-440Hz
I/O Isolation 4000VAC
Operating Ambient Temperature Range –40°C to +70°C
No Load Power Consumption < 0.1W
High Efficiency up to 88%
EMC Compliant without External Components
Safety Approval to UL/IEC/EN 62368-1, IEC/EN 60950, TUV IEC/EN60335-1, TUV IEC/EN 61558-2-16
Specifications
| Output Power | 30W |
|---|---|
| Output Voltage | 15V |
| Output Current | 2A |
| Class | II |
| Temperature | -40°C to +85°C (Linear rise from 80% @-40 to 100% @-30 the linear decline from 100% @55 to 30% @85)C |
| Dimensions | 45.72x63.5x22.86mm |
| Product Brand | Power Partners |
