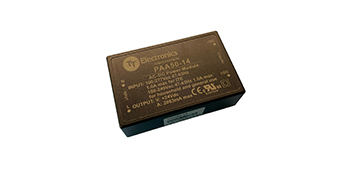

PAA50-14

Lifecycle:

Mature

Brand:

Power Partners

Series:

PAA50

Quote Request

Data Sheet

Ultra Compact Size: 2.92” x 1.85”

Universal Input Range 90-305VAC, 47-440Hz

I/O Isolation 4000VAC

Operating Ambient Temperature Range –40°C to +70°C

No Load Power Consumption < 0.1W

High Efficiency up to 89%

EMC Compliant without External Components

Safety Approval to UL/IEC/EN 62368-1, IEC/EN 60950, TUV IEC/EN60335-1, TUV IEC/EN 61558-2-16

Output Power	50W
Output Voltage	24V
Output Current	2.08A
Class	II
Temperature	-40°C to +70°C (Linear rise from 80% @-40 to 100% @-30 the linear decline from 100% @50 to 50% @70)C
Dimensions	47x74.2x31.1mm
Product Brand	Power Partners
