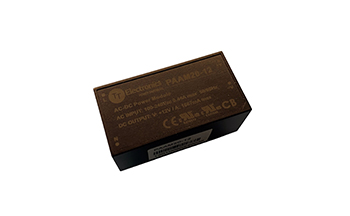

PAAM20-12
Encapsulated Power Supply 12V 20 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PAAM20
PCB Mountable Switching Power Supply
Fully Encapsulated Plastic Case
Universal Input Range 90-264VAC
Regulated Output and Low Ripple and Low Noise
Isolation Class II
<0.1W No Load Input Power
Small Size
CE, CB, UL, cUL Approvals
Specifications
| Output Power | 20W |
|---|---|
| Output Voltage | 12V |
| Output Current | 1.667A |
| Class | II |
| Temperature | -40-80 (linear increase from 80% @-40 to 100% @-30, and linear decrease from 100% @40 to 20% @80)C |
| Dimensions | 27.5x52.5x23.8mm |
| Product Brand | Power Partners |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PAAM20 |
