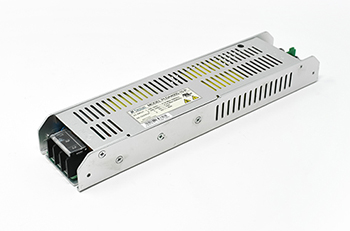

PLDA400S-10-P
Enclosed Power Supply 5V 400 Watt
Lifecycle:
Obsolete
Brand:
Power Partners
Series:
PLDA400S
Wide Operating Temperature (-40°C to 80°C)
Quiet, Fanless Operation
1+1 Current Share Capable
Rugged, Conformal Coated PCB
3yr Warranty
Universal Input
High Reliability Design (MTBF: 200kh)
OPP/SCP/OTP Protection Features
Power Good (PG) Signal
Specifications
| Output Power | 400W |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 5V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 80A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Industrial |
| Class | I |
| Battery Charger | False |
| Temperature | -40-80 (derate linearly from 100% @50 to 80% @60, and then linearly from 80% @60 to 60% @80)C |
| Dimensions | 60x250x30mm |
| Product Brand | Power Partners |
