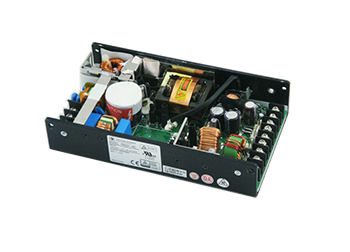

PM201-42C
Enclosed Power Supply -12-12V 200 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM201
Low safety ground leakage curren
Meet EN55011, EN55022 and FCC Class B
Power Factor 0.98 typical
Short-circuit protection
Power Fail Detect (PFD) signal
100% burn-in at full rated load
Optional cover and fan ass embly
Remote inhibit - TTL high t o disable output
Compliant with RoHS requirements
Specifications
| Output Power | 200W |
|---|---|
| Number of Outputs | 4V |
| Output Voltage 1 | 5.1V |
| Output Voltage 2 | 12V |
| Output Voltage 3 | -12V |
| Output Voltage 4 | 12V |
| Output Current 1 | 30A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | 8A |
| Output 3 Max Current | 4A |
| Output 4 Max Current | 4A |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | 0-70 (Derate from 100% at +50℃ linearly to 50% at +70℃)C |
| Dimensions | 101.6x147.32x38.1mm |
| Product Brand | Protek |
