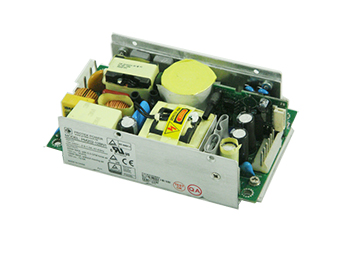

PM202-15CN1
Enclosed Power Supply 28V 200 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM202
BF Class insulation
Operation altitude up to 5000 meters
3 x 5 inch footprint with 1.5 inch low profile
Less than 220 μA leakage current
Meet EN55011 /55022 and FCC Class B
Power Factor 0.98 typical
Short-circuit protection
Power Fail Detect (PFD) signal
Inhibit - TTL high to disable output
Compliant with RoHS requirements
High Efficiency 92% typical
Specifications
| Output Power | 200W |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 28V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 5.36A |
| Output 1 Max Current with CFM | 7.15A |
| CFM | 5.3A |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | 0-70 (Derate from 100% at +50℃ linearly to 50% at +70℃, applicable to convection and forced-air cooling conditions)C |
| Dimensions | 76x127x38mm |
| Product Brand | Protek |
