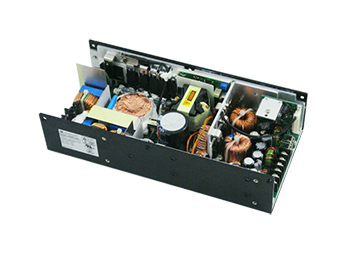

PM650-17C
Enclosed Power Supply 36V 700 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM650
EN61000-3-2 class A and D compliant
Power Factor 0.98 typical
Overvoltage prot ection
Short-circuit protection
Thermal protection
Power Fail Detect (PFD) signal
100% burn-in at full rated load
Remote sense on output #1 and output #2
Remote inhibit – TTL high t o disable output
Compliant with RoHS requirements
Specifications
| Output Power | 700W |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 36V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 18.1A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | 0-70 (Derate from 100% at +50℃, linearly to 50% at +70℃)C |
| Dimensions | 127x266.7x63.5mm |
| Product Brand | Protek |
