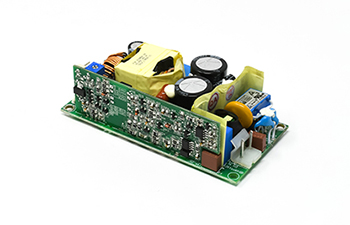

PM100-12A
Open Frame Power Supply 12V 100 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM100
Medical and ITE approvals
Compact size 2” × 4” × 1.26”
High power density 10 W/cubic inch
100W output with convection cooling up to +50℃
Low earth leakage current
EN55011 /55022 class B emission
RoHS compliant
Specifications
| Output Power | 100W |
|---|---|
| Output Voltage 1 | 12V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 8.340A |
| Application | Medical |
| Product Brand | Protek |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PM100 |
