PM101-17A

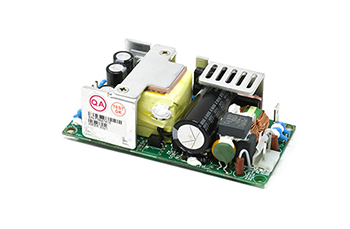

Open Frame Power Supply 36V 100 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM101
BF class insulation
Operation altitude up to 5000 meters
2 x 4 inch foot print with 1.29 inch low profile
Less than 2 75 μA leakage current
Wide input range 80 -264 VAC
Meet EN55011 /55022 and FCC Class B
Short-circuit protection
Compliant with RoHS requirements
No load power consumption less than 0. 15W
Specifications
| Output Power | 100W |
|---|---|
| Output Voltage 1 | 36V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 2.230A |
| Application | Medical |
| Product Brand | Protek |
