PPWAM150-13-1A
Open Frame Power Supply 18V 150 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PPWAM150
Very High Power Density: 21.18W/in3

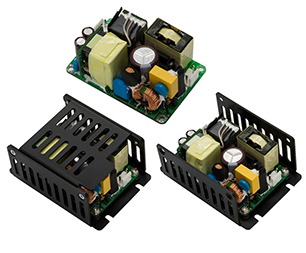

U-Channel and Enclosed versions available
Medical and I.T.E Approvals
Small 2” x 3” Package
Efficiencies up to 92%
Suitable for BF Applied Part Applications
Meets DoE Level VI Requirements
No Load Power Consumption <150 mW
Wide Operating Temperature Range from –20°C to + 70°C
Specifications
| Output Power | 150W |
|---|---|
| Output Voltage 1 | 18V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 5.560A |
| Application | Medical |
| Product Brand | Power Partners |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PPWAM150 |
