PAA500-14B

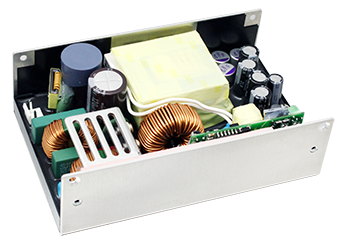

U-Channel Power Supply 24V 500 Watt
Lifecycle:
Mature
Brand:
TT Electronics
Series:
PAA500
Small Compact Design
Cooling by forced air, conduction or convection
High Efficiency
Long Life
Reliability
Universal Input
UL & CE Approved
Specifications
| Output Power | 500W |
|---|---|
| Output Voltage 1 | 24V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 10.830A |
| Output 1 Max Current with CFM | 10.830A |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Industrial |
| Input Class | I/II |
| Number of Outputs | 1 |
| Temperature | -30-80 (linear rise from 80% @-30 to 100% @-25, linear decline from 100% @50 to 60% @70)C |
| Dimensions | 130x83x40mm |
| Product Brand | TT Electronics |
