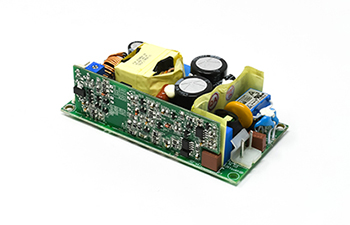

PM100-10B
U-Channel Power Supply 5V 100 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM100
Medical and ITE approvals
Compact size 2” × 4” × 1.26”
High power density 10 W/cubic inch
100W output with convection cooling up to +50℃
Low earth leakage current
EN55011 /55022 class B emission
RoHS compliant
Specifications
| Output Power | 100W |
|---|---|
| Output Voltage 1 | 5V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 20A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Input Class | I |
| Number of Outputs | 1 |
| Temperature | -10°C to 70°C (Derate from 100% at +50°C linearly to 50% at +70°C)C |
| Dimensions | 101.6x50.8x32mm |
| Product Brand | Protek |
