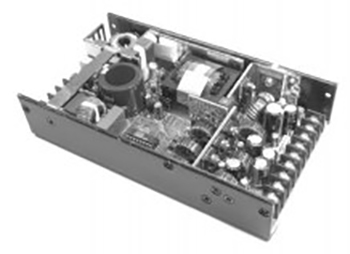

PM100-13B
U-Channel Power Supply 15V 200 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM201
Low safety ground leakage curren
Meet EN55011, EN55022 and FCC Class B
Power Factor 0.98 typical
Short-circuit protection
Power Fail Detect (PFD) signal
100% burn-in at full rated load
Optional cover and fan ass embly
Remote inhibit - TTL high t o disable output
Compliant with RoHS requirements
Specifications
| Output Power | 200W |
|---|---|
| Output Voltage 1 | 15V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 13.4A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Input Class | I |
| Number of Outputs | 1 |
| Temperature | -10°C to 70°C (Derate from 100% at +50°C linearly to 50% at +70°C)C |
| Dimensions | 101.6x147.32x38.1mm |
| Product Brand | Protek |
