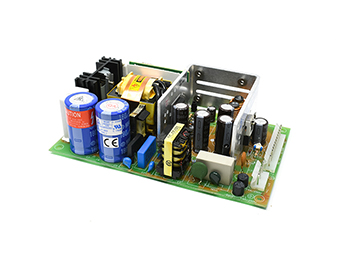

PM110-14B
U-Channel Power Supply 24V 101 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM110
Low safety ground leakage current
Meet EN55011 and FCC Class B
Small size, light weigh
100% burn-in
Wide input range 85 -264 VAC
Input surge current protection
Overvoltage protection
Overcurrent protection
Compliant with RoHS requirements
Specifications
| Output Power | 101W |
|---|---|
| Output Voltage 1 | 24V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 4.5A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Input Class | I |
| Number of Outputs | 1 |
| Temperature | 0°C to 70°C (Derate from 100% at +50°C linearly to 50% at +70°C)C |
| Dimensions | 108x177.8x47mm |
| Product Brand | Protek |
