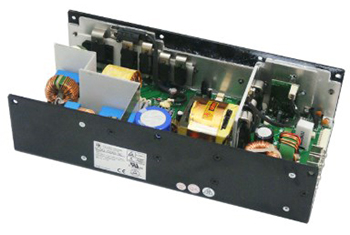

PM450-32B
U-Channel Power Supply 5.1-24V 480 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM450
EN61000-3-2 class A and D compliant
Power Factor 0.98 typical
Overvoltage prot ection
Short-circuit protection
Thermal protection
Power Fail Detect (PFD) Signal
100% burn-in at full rated load
Remote sense on output #1 and output #2
Remote inhibit – TTL high to disable output
Compliant with RoHS requirements
Specifications
| Output Power | 480W |
|---|---|
| Output Voltage 1 | 24V |
| Output Voltage 2 | 12V |
| Output Voltage 3 | 5.1V |
| Output Voltage 4 | - |
| Output Current 1 | 12A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | 17A |
| Output 3 Max Current | 8A |
| Output 4 Max Current | - |
| Application | Medical |
| Input Class | I |
| Number of Outputs | 3 |
| Temperature | 0°C to 70°C (Derate from 100% at +50°C, linearly to 50% at +70°C)C |
| Dimensions | 127x171.5x63.5mm |
| Product Brand | Protek |
